Industrial Temperature Sensor
EM500-PT100
Industrial Temperature Sensor
EM500-PT100
EM500-PT100 equips with a highly accurate temperature sensor PT100, the platinum resistance temperature detector offers much most stable and precise temperature measurement from -200 to 800°C.
Vibration-resistant construction
In three-wire circuit
Customizable temperature (-200~800)
Terminal heads available in straight tube, armoured, SMT, threaded, magnet
Features, Benefits And Applications >>>
In the process industry, PT100 sensor is universally and broadly used to measure extreme temperatures covering a wide range from -200 to +800°C. Also, the sensor type indicates two important factors about the sensor.

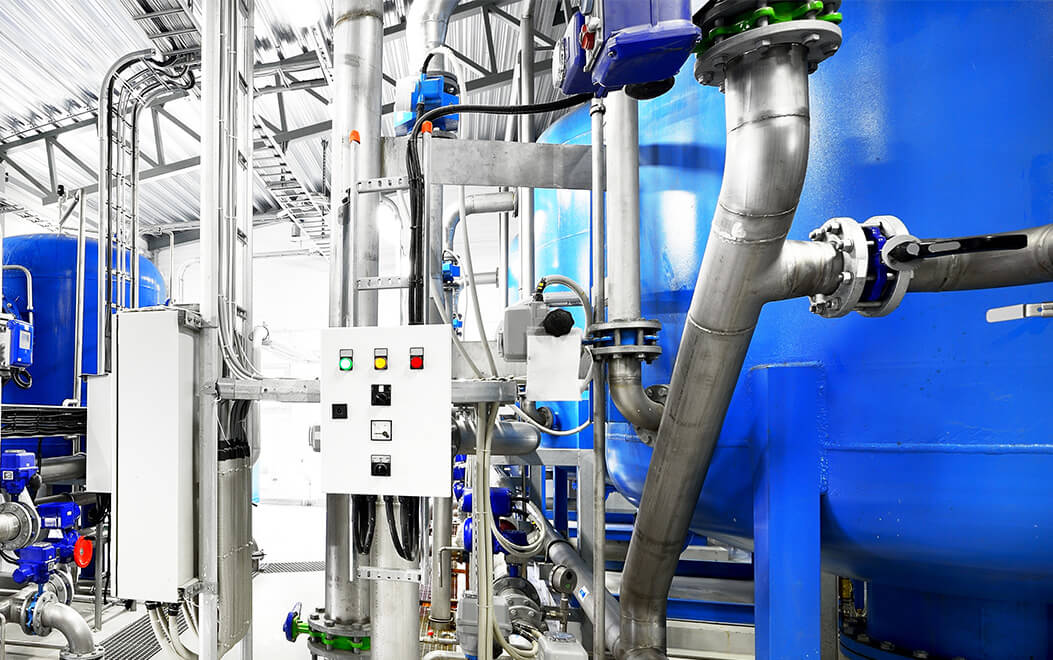

Temperature Monitoring for Industrial Boilers >>>
In industrial scenes, as the operating time of mechanical equipment, such as an industrial boiler, becomes longer during operation, the temperature will increase continuously. Therefore, the need of using an industiral temperature sensor to monitor the temperature of the equipment in time can detect problems early and prevent safety accidents.
Cloud Web & APP:
EM500-PT100 Sensor works perfectly with Ursalink Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Ursalink Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.
LoRaWAN Wireless Transmission
Ultra-low power consumption and easy deploymentBuilt-in 19000 mAh high-capacity battery can be used for 10 years.
Simple and Easy to Use
Configure Your Device via NFC
Specifications
| LoRaWAN® | Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 20dBm | |
| Sensitivity | -147dBm @300bps | |
| Mode | OTAA/ABP Class A | |
| Measurement | Range | EM500-PT100-T200: -50 °C to +200 °C EM500-PT100-T500: -50 °C to +500 °C EM500-PT100-T800: -50 °C to +800 °C (Customizable from -200 °C to +800 °C) |
| Accuracy | ±0.5% | |
| Physical Characteristics | Probe Length | 1m (Customizable) |
| Probe Type | Straight tube (Bolt-on ring, magnet and other types customizable) | |
| Power Supply | 19000 mAh Li-SOCL2 | |
| Operating Temperature | -30°C to +70°C | |
| Ingress Protection | IP66 (IP67 as required) | |
| Dimension | 105.4 × 71 × 69.5 mm (Sensor and cable are not included) | |

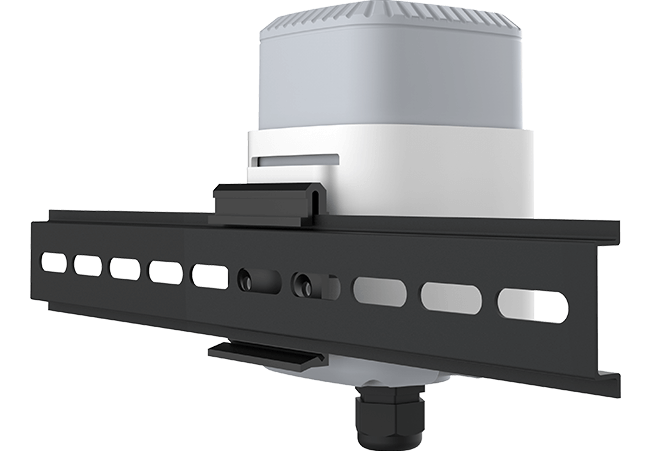

| Mounting | DIN rail, wall, pole mounting | |
Selection Guide
| Series | Picture | Model | Measuring Range | Descriptions |
| EM500- PT100 | |
EM500-PT100- T200 | -50~200 | 19000 mAh Li-SOCl2 battery NFC enabled Customizable cable length, default 1.5m (customized cable length available) *Customizable temperature (-200~800℃) **If the maximum temperature is over 300℃, the PT100 will be non-waterproof. ***If the minimum temperature is below -50℃, then the maximum temperature should be below 100℃. ****Default head type is straight tube. Other types include armoured, SMT, threaded, magnet and the processing fees may be added. |
| EM500-PT100- T500 | -50~500 | |||
| EM500-PT100- T800 | -50~800 |
