CO2 Sensor (4 in 1)


CO2 Sensor (4 in 1) CO2 Sensor (4 in 1) CO2 Sensor (4 in 1) CO2 Sensor (4 in 1)
CO2 Sensor (4 in 1) CO2 Sensor (4 in 1) CO2 Sensor (4 in 1) CO2 Sensor (4 in 1)

CO2 Sensor (4 in 1)

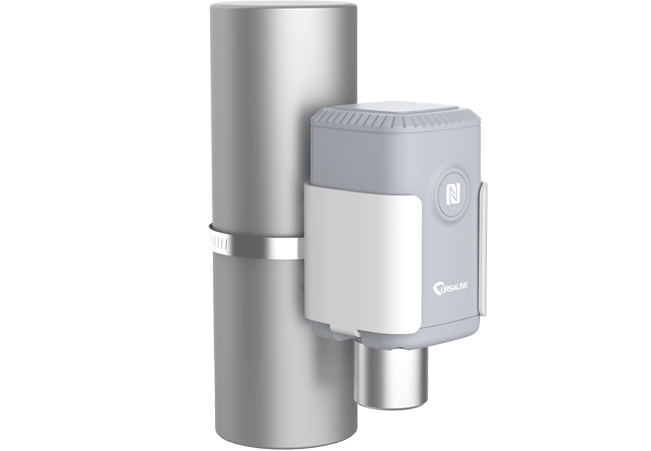

EM500-CO2 is designed for measuring gaseous carbon dioxide (CO2) concentration in harsh environments. It is useful in the application where knowing CO2 level is important like greenhouse, building ventilation, fruit and vegetable storage. Besides, it also supports temperature, humidity and barometric pressure measurement.

CO2 Sensor (4 in 1)

measuring rangeMeasuring ranges from 400 to 5000 ppm

easy installationEasy installation in any enclosed areas or outdoors

4 in 1 sensor 4 in 1 (CO2, barometric pressure, temperature, humidity)

Smart Wine Cellar >>>

Carbon dioxide is a by-product produced during the fermentation of wine. Because the density of carbon dioxide is heavier than air, it is easy to overflow from the fermentation tank. When it falls on the ground of the winery, it will form fatal and undetectable potholes, which will bring great hidden danger to the safety of the operators.

Smart Wine Cellar
forest fire detection

Forest Fire Detection >>>

Nowadays, forest fires often cause serious threats to the environment and produce real emergency situations and natural disasters. Most of the times, when someone notices about the fire, it is too late because the fire has spread already. Thus, the enhancement of forest fire detection system by CO2 (carbon dioxide) monitoring can be evaluated.

Cloud Web & APP

Cloud Web & APP:

CO2 Sensor works perfectly with Ursalink Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Ursalink Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.

LoRaWAN Wireless Transmission

Ultra-low power consumption and easy deployment

Built-in 19000 mAh high-capacity battery can be used for 10 years.

Ultra-low power

Simple and Easy to Use
Configure Your Device via NFC

Turn on NFCTurn on NFC and attach
the sensor to the NFC area
Configure your sensorConfigure your sensor


LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Measurement (CO2) Range 400 – 5000 ppm
Resolution 1 ppm
Accuracy ±30 ppm or ±3 % of reading
Physical Characteristics Power Supply 19000 mAh Li-SOCl2
Operating Temperature 30°C to +70°C
Ingress Protection IP66
Dimension 156.1 × 71 × 69.5 mm
Mounting DIN rail, wall, pole mounting

Selection Guide

Series Picture Model Measuring Range Descriptions
EM500- CO2 em500 co2 EM500-CO2 400 – 5000 ppm 19000 mAh Li-SOCl2 battery
NFC enabled
IP66 rated
