CO2 Sensor (4 in 1)

EM500-CO2

CO2 Senser (4 in 1) CO2 Senser (4 in 1) CO2 Senser (4 in 1) CO2 Senser (4 in 1)
CO2 Sensor (4 in 1) CO2 Senser (4 in 1) CO2 Senser (4 in 1) CO2 Senser (4 in 1)

CO2 Senser (4 in 1)

EM500-CO2

EM500-CO2 is designed for measuring gaseous carbon dioxide (CO2) concentration in harsh environments. It is useful in the application where knowing CO2 level is important like greenhouse, building ventilation, fruit and vegetable storage. Besides, it also supports temperature, humidity and barometric pressure measurement.

CO2 Senser (4 in 1)

measuring rangeMeasuring ranges from 400ppm to 5000ppm

easy installationEasy installation in any enclosed areas or outdoors

4 in 1 sensor 4 in 1 (CO2, barometr, barometric pressure, humidity, temperature)

Smart Wine Cellar >>>

Carbon dioxide is a by-product produced during the fermentation of wine. Because the density of carbon dioxide is heavier than air, it is easy to overflow from the fermentation tank. When it falls on the ground of the winery, it will form fatal and undetectable potholes, which will bring great hidden danger to the safety of the operators.

Smart Wine Cellar
forest fire detection

Forest Fire Detection >>>

Nowadays, forest fires often cause serious threats to the environment and produce real emergency situations and natural disasters. Most of the times, when someone notices about the fire, it is too late because the fire has spread already. Thus, the enhancement of forest fire detection system by CO2 (carbon dioxide) monitoring can be evaluated.

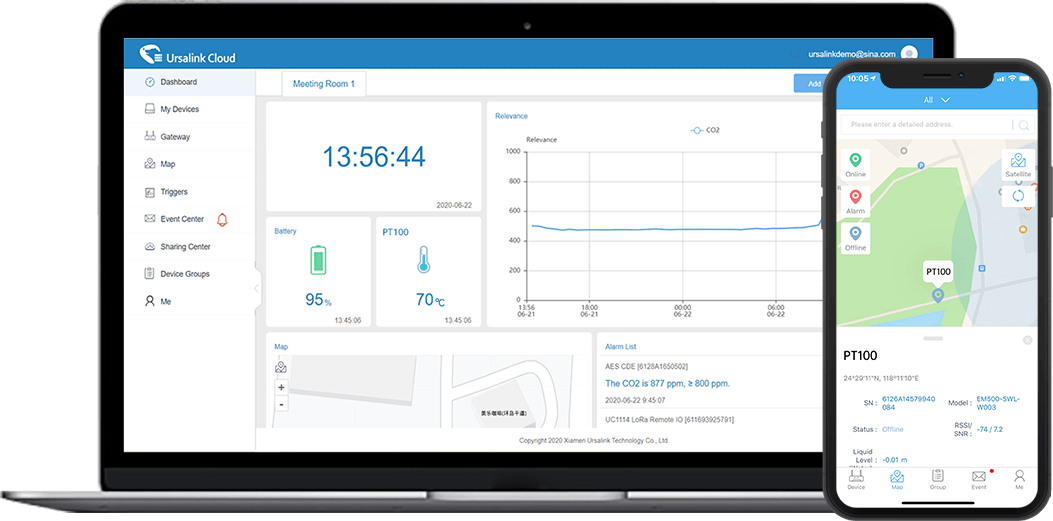

Cloud Web & APP

CO2 Sensor works perfectly with Ursalink Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Ursalink Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.

Ursalink Cloud

Specifications

LoRaWAN Frequency EU433/CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Measurement Range EM500-UDL-W050: 0.3-5m
EM500-UDL-W100: 0.5-10m
(Customizable for snow level detection usage)
Resolution 1 mm
Accuracy ±1%
Physical Characteristics Power Supply 19000 mAh Li-SOCl2
Operating Temperature -20°C to +70°C
Ingress Protection IP66
Dimension 156.1 × 71 × 69.5 mm
Mounting DIN rail, wall

Selection Guide

Series Picture Model Measuring Range Descriptions
EM500- CO2 Selection Guid EM500-CO2 400 – 5000 ppm 19000 mAh Li-SOCl2 battery
NFC enabled
IP66 rated
Suit Applications: water/ground
